IP66 12W 1M 0.5M Diffuse LED Linear WallWasher Light For Building Facade Application

IP66 12W 1M 0.5M Diffuse LED Linear WallWasher Light For Building Facade Application

Power: 12W / 18W / 24W / 36W / 48W / 72W / 96W

LED: OSRAM

CRI: 80 / 90

SDCM: 3 / 5

CCT: 2700K / 3000K / 4000K / 6000K

Color: RGB / RGBW

Control: Remote / On-Off

Input Voltage: DC12V / DC24V / AC220V

Dimming: DALI / DMX512 / 0-10V / 1-10V / Triac

Beam Angle: 10/15/30/45/60° Symmetrical Lens

18*55°/20*45°/10*60° Asymmetrical Lens

Material: 6063 aluminum alloy profile, electrostatic power coated

Installation: Surface Mounting

Waterproof: IP66

Certification: CE EMC LVD, ROHS, IP68 etc.

Warranty: 3-5 Years

Download

Inquire Now Next Product

Material Specifications

LED Wall Washer Light Specification:

0MODEL NO.

POWER

LED COLOR

INPUT VOLT.

LENS DEGREE

SIZE

LUMEN

BL-OXT4800

12W

2700-6500K

RGB 3in 1

RGB 4in 1

DMX512

24V DC

110°

28*63*1000mm

960lm

LED:OSRAM/EPISTAR

Housing: 12#Die-casting powder coated aluminum.

LED Driver: Constant voltage input.Constant current output.

Dimmable: Triac/Dali/1-10V/PWM/DMX512.

Ultra clear and high quality strengthen 8mm tempered glass cover, ensure high luminous efficacy (90-95%), outstanding accruacy of color temperature, and excellent impact resistance and rub resistance.

Power cable: H05RN-F 2*1.0mm² (low voltage). H05RN-F 3*0.75mm² ( high voltage). H05RN-F 5x0.75mm² (RGB).

Working Temperature:-20 to 40°C

Parameter Data

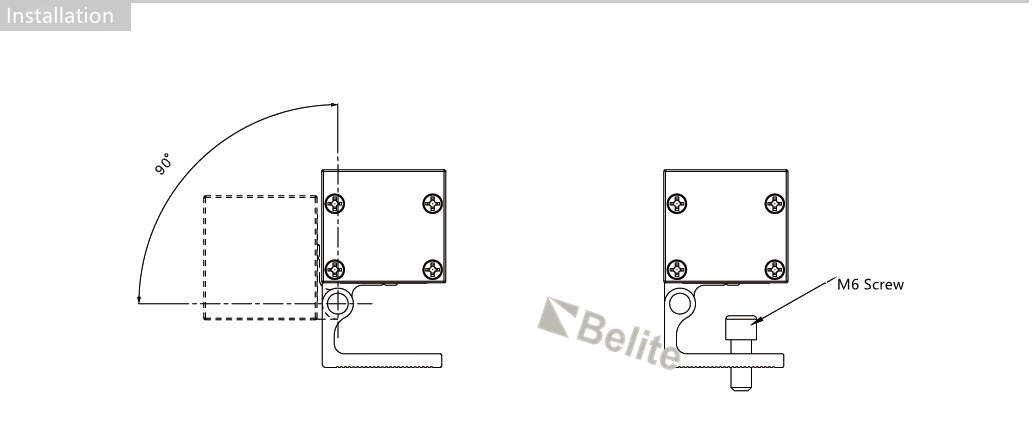

Installation Instruction

12W High Quality Wall Washer Light With Osram Illuminant
