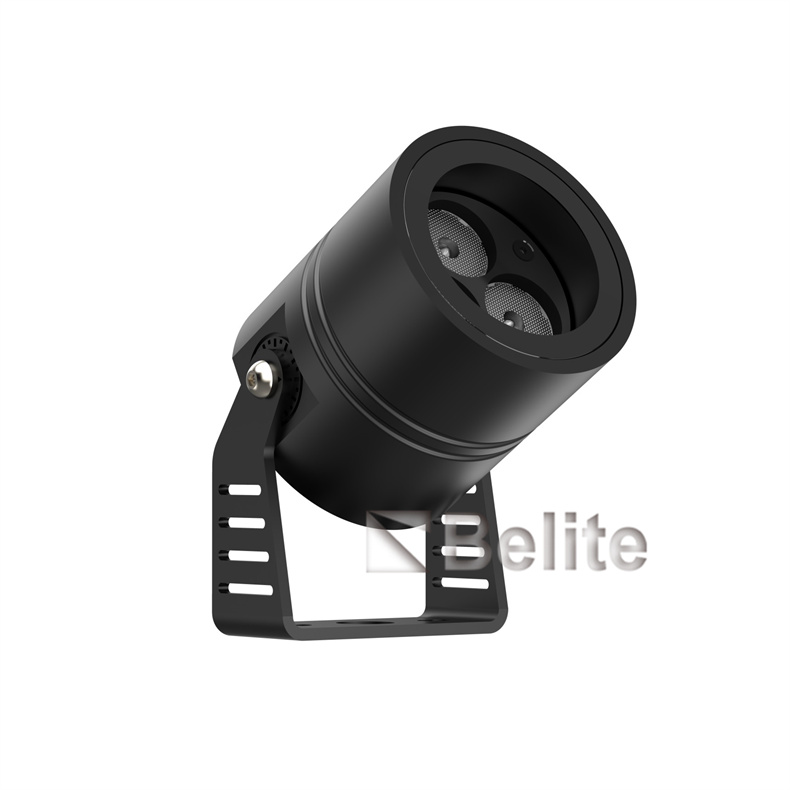

BELITE IP66 LED Landscape Spot Light 8W CREE 24VDC

Power:1W~15W

LED:CREE/OSRAM

CRI: 80 / 90

SDCM: 3 / 5

CCT: 2700K / 3000K / 4000K / 6000K/RGB 3in1/RGBW 4in1

Control: Remote / On-Off

Input Voltage:DC24V/AC220V

Dimming: DALI / DMX512 / 0-10V / 1-10V / Triac

Beam Angle: 15°/24°/36° /60°

5°/8°/10° /12°/17°/25°/40°/60°

Material: CNC 6063# aluminum

Accessories: Spike/Cylindrical Hood

Waterproof: IP66

Certification: CE EMC LVD, ROHS, IP66 etc.

Warranty: 3-5 Years

Download

Inquire Now None

Material Specifications

Model No.:	Power	LED QTY	LED Brand	LED Color	Beam Angle	Input Volt.
LM-GD690108	8W/10W	1PCS	CREE	3000K/4000K /5000K/5700K	15°/24°/36° /60°	AC220V
LM-GD690107	7W-10W	1PCS	CREE		15°/24°/36° /60°	DC24V
LM-GD690306	6W/8W	3PCS	CREE/OSRAM		5°/8°/10° /12° /17°/25°/40°/60°	AC220V
LM-GD690307	7W-10W		CREE/OSRAM			DC24V
LM-GD550105	7W-10W		TYANSHINE	RGBW 4in1 DMX512		DC24V

Housing: CNC 6063# aluminum. Matt sliver/black anodized Finish pr powder coated

Lens:Optical lens,efficiency≥85%

Glass Cover:Tempered glass.T=4mm

Driver:Constant voltage input.Constant current output.

Dimmable: Triac/Dali/1-10V/PWM/DMX512.

Power Cable:H05RN-F 2×1.0mm2 L=0.5m(low voltage).H05RN-F 3×1.0mm² L=0.5m(high voltage)

H05RN-F 2×1.0+3×0.5mm² L=0.5m(RGBW 4in1 DMX512)

Working Temperature:-20 to 40°C.

Base:Aluminum

Spike:ABS

Mounting Type:U bracket&mounting plate for solid ground,spike for soft ground.

Parameter Data

BELITE IP66 LED Landscape Spot Light 6W CREE 24VDC

Installation Instruction
